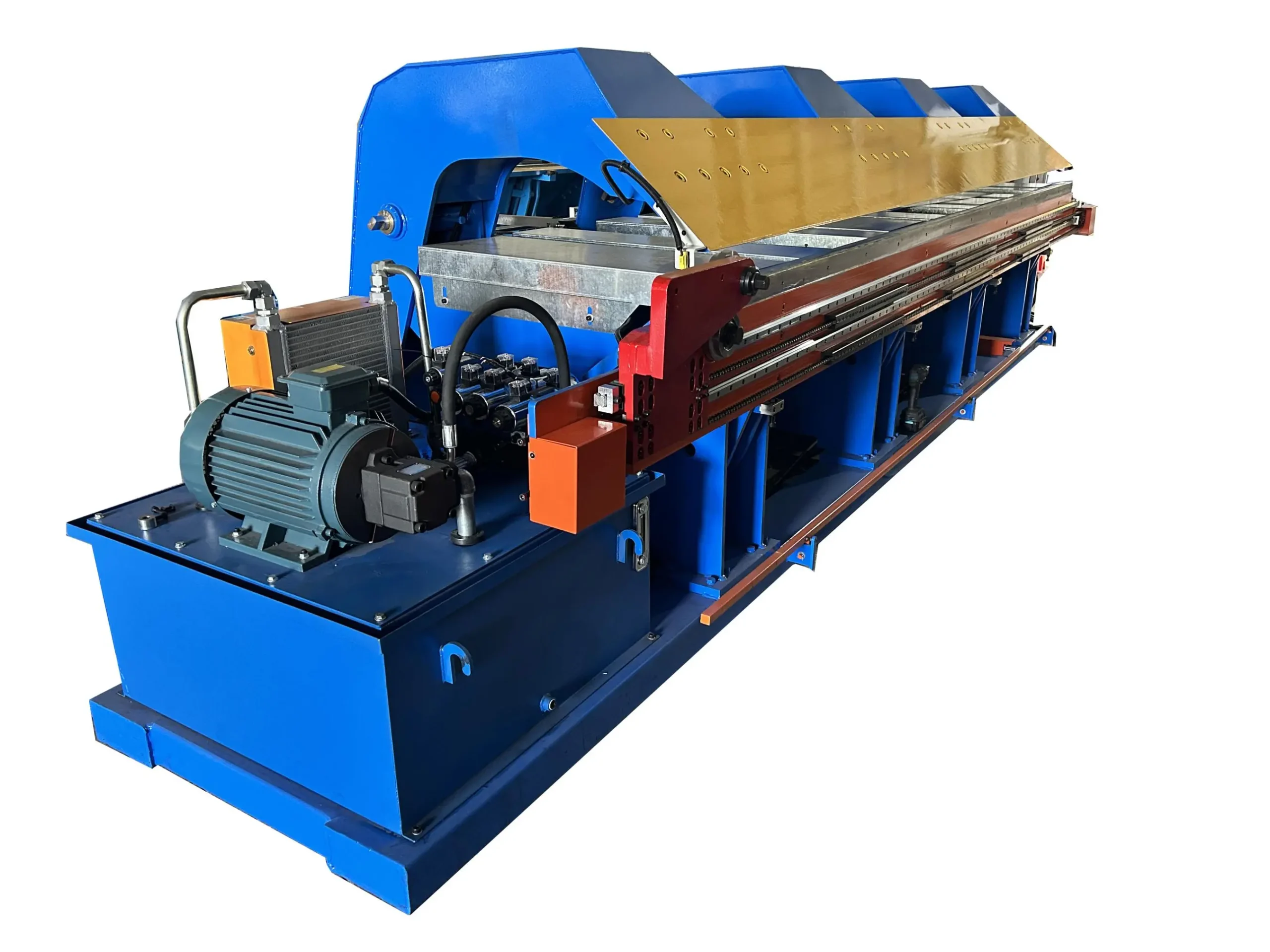

Folder Machine
Key Features:
- Intuitive Schneider PLC Control: Featuring a user-friendly 3D interface developed by SKD and powered by Schneider Electric, the system allows operators of all skill levels to easily access and utilize its full range of advanced functions.

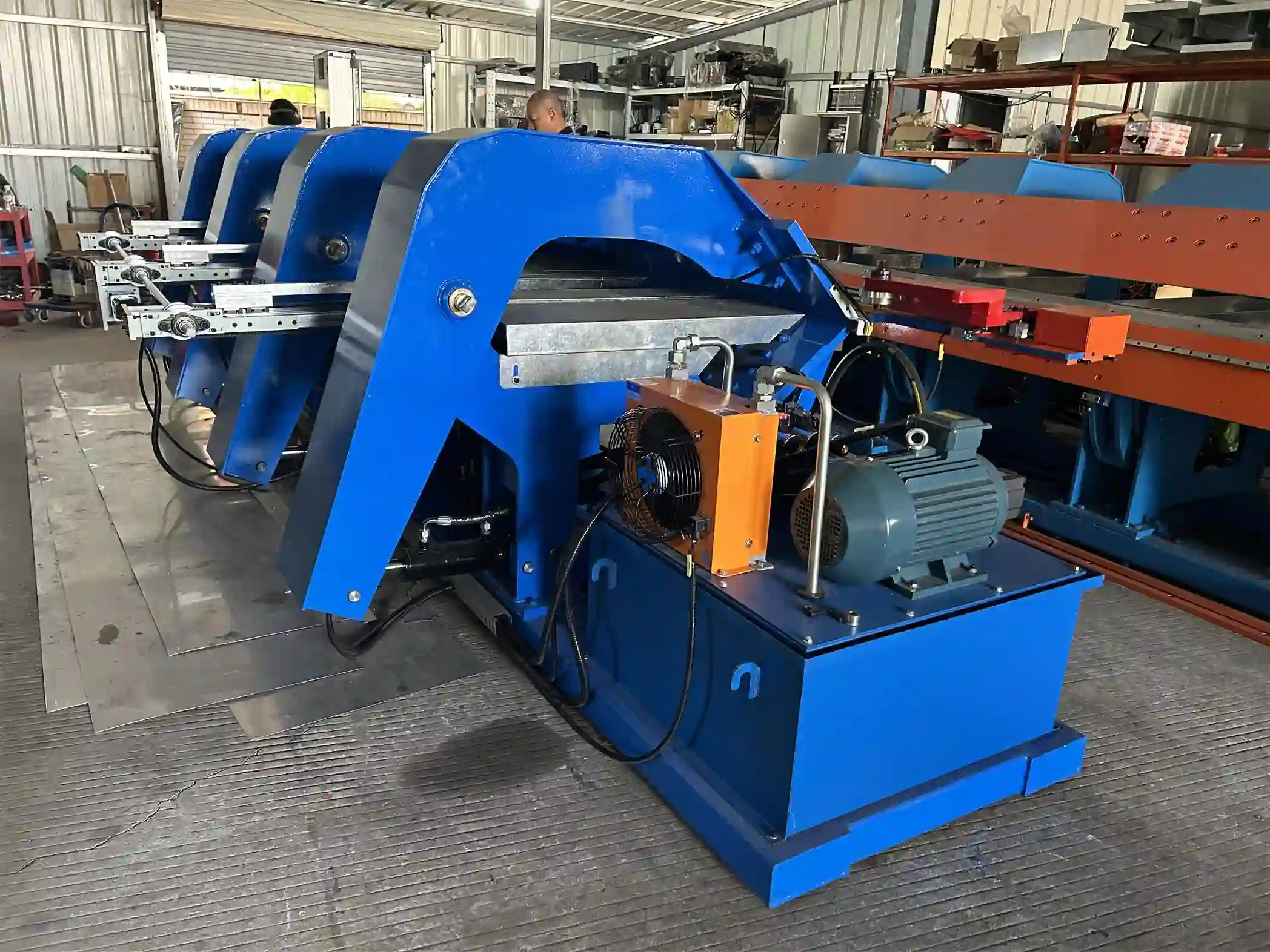

- High-Capacity Slitting Unit: Engineered for durability and performance with a high-tensile slitter head and a robust chain drive, capable of handling materials up to 2.0mm (14ga) in thickness. The heavy-duty frame, combined with an advanced V-wheel track design, minimizes the need for routine maintenance.
- Heavy-Duty Welded Construction: Built with fully welded high-tensile steel plates, reinforced to 32mm at critical pivot points, ensuring exceptional long-term structural integrity. The frame is treated with a zinc primer and powder coating for superior corrosion resistance and finish.
- Customizable & Replaceable Clamp Inserts: The folding clamp features interchangeable, hardened inserts at the tip, which are easily replaceable if worn or damaged. These inserts are also available with customized radii to accommodate diverse materials and specific bending applications.
General Specifications:
- Material Compatibility:
- Mild Steel: 0.4 – 2.0 mm
- Drive System: Servo Motor Driven
- Standard Working Length: 4000mm/6000mm/8000mmSlitting Device1）Type Of Blade : Slitting wheel2）Diameter: φ80
3）Material: Cr12MoV
Min. folding dimension as below
