Solar Panel Machine

Componentes de máquinas

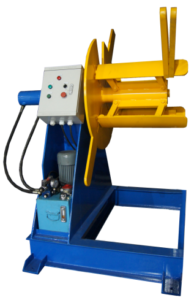

Hydraulic decoiler     1 sets

Oil Pump Power: 1.5Kw,

Hydraulic tensioning Inner Hole,

Tensioning Range 480-620mm,

Hydraulic Rising Steel Roll Inner Hole;

Steel Coil Inner Diameter: 500-600mm±30;

Steel Coil Outer Diameter: Maximum 1200mm;

Bearing Capacity: Up To 3 Tons;

Steel Coil Width: Up To 500mm;

Hydraulic Punching Device 1 set

Punching Material: Cr12, heat-treated, HRC60-62

Punching Die: One set

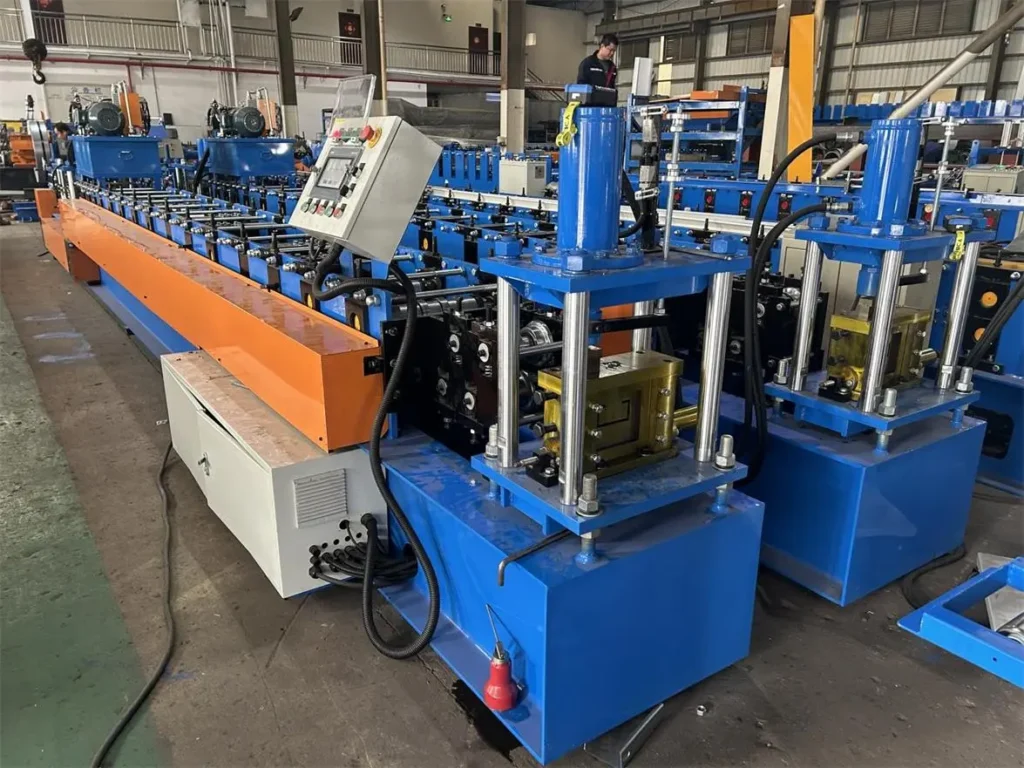

Máquina perfiladora   1 set

Gear / chain transmission;

Forming station: 14

Roller material:GCr15, heat treated HRC56-62, finely machined, outer surface polished and hard chrome plated

Shaft diameter:75mm, fine processing, tempering treatment;

Servo motor power: 11KW

Forming speed:20-25m /min

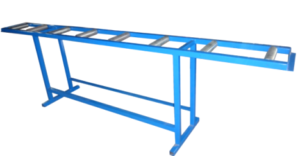

Run out table     1 set
