C75-200 Multifunctional Light Steel Frame Machine Features
The C75-200 multi-specification light steel frame machine is an efficient equipment designed for manufacturing heavier and wider cross-section light steel frames and trusses. The production range of the machine covers 75mm to 200mm and is subdivided into four areas: 75-96mm, 96-117mm, 117-138mm, and 138-200mm. During the production process, only the stamping dies of chamfer cutting 2 and notch cutting 2 need to be replaced to easily realize the production and processing of materials of different widths, greatly improving production flexibility and efficiency.
The Multi Profiles Light Steel Frame Machine supports three different sizes of flanges (flanges), namely 32mm, 41mm and 51mm, to meet the needs of different application scenarios. This multi-specification design enables the equipment to be widely used in a variety of building structures, including walls, floors, and roofs of 1 to 5-story residential buildings, modular houses, movable units, light commercial buildings, and customized building projects such as solar panel frames.
The core advantage of this equipment lies in its efficient production capacity and flexible operability. Through simple mold replacement, users can switch to produce light steel keels of different specifications in a short time, thereby reducing downtime and improving production efficiency. In addition, the C75-200 machine adopts an advanced automatic control system to ensure high precision and consistency in the production process, reduce human operation errors, and improve product quality.
In the construction industry, the C75-200 multi-specification light steel keel forming machine has become the preferred equipment for many construction companies and manufacturing companies due to its excellent performance and wide range of applications. Whether it is used for residential buildings, commercial buildings or custom projects, the equipment can provide efficient and reliable solutions to help users achieve fast and high-quality production of building structures.
Technical Parameters

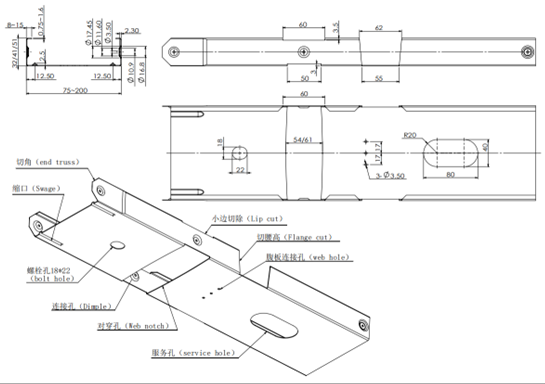

STANDARD METRIC SIZES
| Section Size | 75mm | 89mm | 92mm | 102mm | 140mm | 200mm |
| Web Width | 75mm | 89mm | 92mm | 102mm | 140mm | 200mm |
| Flange Height | 32 to 51mm | 32 to 51mm | 32 to 51mm | 32 to 51mm | 32 to 51mm | 32 to 51mm |
| Service Hole *1 | 40*80mm | 40*80mm | 40*80mm | 40*80mm | 40*80mm | 40*80mm |
| Dimple hole *2 | 4.8mm | 4.8mm | 4.8mm | 4.8mm | 4.8mm | 4.8mm |
| Thickness Range | 0.8-1.2mm | 0.8-1.6mm | 0.8-1.6mm | 0.8-1.6mm | 0.8-1.6mm | 0.8-1.6mm |
Machine Details

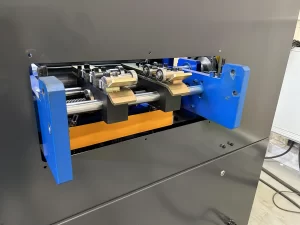

1. The feeding guide device of the roll forming machine is a key equipment in the roll forming production line. It is mainly used to accurately and smoothly introduce raw materials (such as metal sheets, plastic films, etc.) into the roller system of the roll forming machine to ensure the continuity of the forming process and the quality of the product.

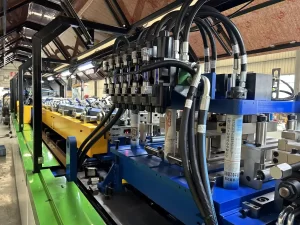

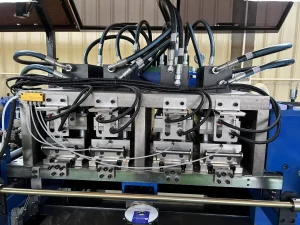

2. Punching system
The holes parameter is able to set by the computer, including Punching length and numbers.
All punching molds are made by Cr12Mov
Driven by a hydraulic station

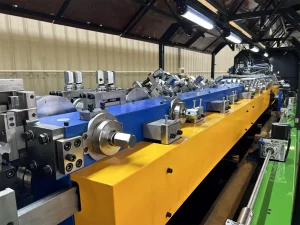

3. Main machine
Weight of machine: 10Tons
Size of machine: 8500*1550*1900mm
Servomotor power: 14 KW
Speed of forming: 35m/min
Comprehensive speed: 5-12m/min, depending on the number of holes, swagand cutting.
Roll station: 17
Roller material: Cr12 mold steel, being quenched treatment, with digital-controlled processing. This ensures rollers are all in good condition and long life.
Shaft material: 40Cr, CNC processing
Transmission and feeding method: Guide shaft and guide wheel
Running Video
Applications

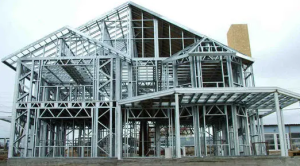

- Construction Industry: Ideal for manufacturing steel frames used in residential, commercial, and industrial buildings.
- Infrastructure Projects: Suitable for producing structural components in bridges, warehouses, and modular constructions.
- Custom Fabrication: Enables precise and tailored processing for specialized steel profiles.
- Batch Production: Efficiently handles large-scale manufacturing of standardized profiles. This versatile system provides innovative solutions for multiple building industries

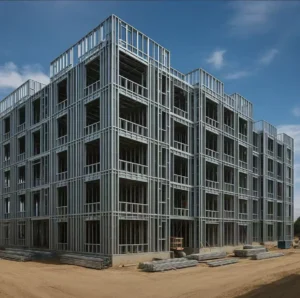

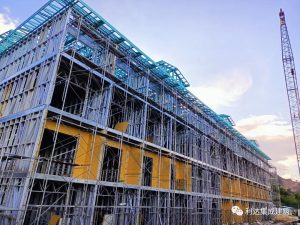

- Multi-storey structures: load-bearing walls, composite floors, and pitched roof systems certified for 1-5 storey residential/commercial buildings
Advantages of Multiple LGSF Machine
1. **High-Precision Positioning Technology**
– The equipment adopts an advanced automatic positioning system, achieving millimeter-level precision during the processing, effectively avoiding positioning errors common in traditional manual operations. Its automatic positioning function not only ensures the accuracy of wall keel processing but also maximizes product consistency and integrity, providing reliable assurance for subsequent construction.
2. **Intelligent Operation Experience**
Adhering to a humanized design concept, the equipment features a one-touch intelligent operation interface:
– Equipped with a 21-inch high-definition touchscreen with intuitive and clear instructions
– Can store up to 100 sets of processing parameters for quick retrieval and use
– Real-time monitoring of equipment status through automatic detection
This significantly reduces the technical requirements for operators and greatly improves work efficiency.
3. **High Production Capacity**
Through process optimization and intelligent control:
– Daily output per machine can reach 6-8 tons
– Efficiency is increased by 300% compared to traditional manual processing
– Finished product qualification rate remains consistently above 99.5%
The processing cycle is significantly shortened, creating higher economic benefits for the enterprise.
4. **Multiple Safety Protections**
The equipment is equipped with a comprehensive safety protection system:
– Automatic overload protection function
– Emergency stop safety device
– Dual limit protection
– Emergency power-off system
This ensures the safety of operators and the stable operation of the equipment.
