Steel Belt Sandwich Panel Line

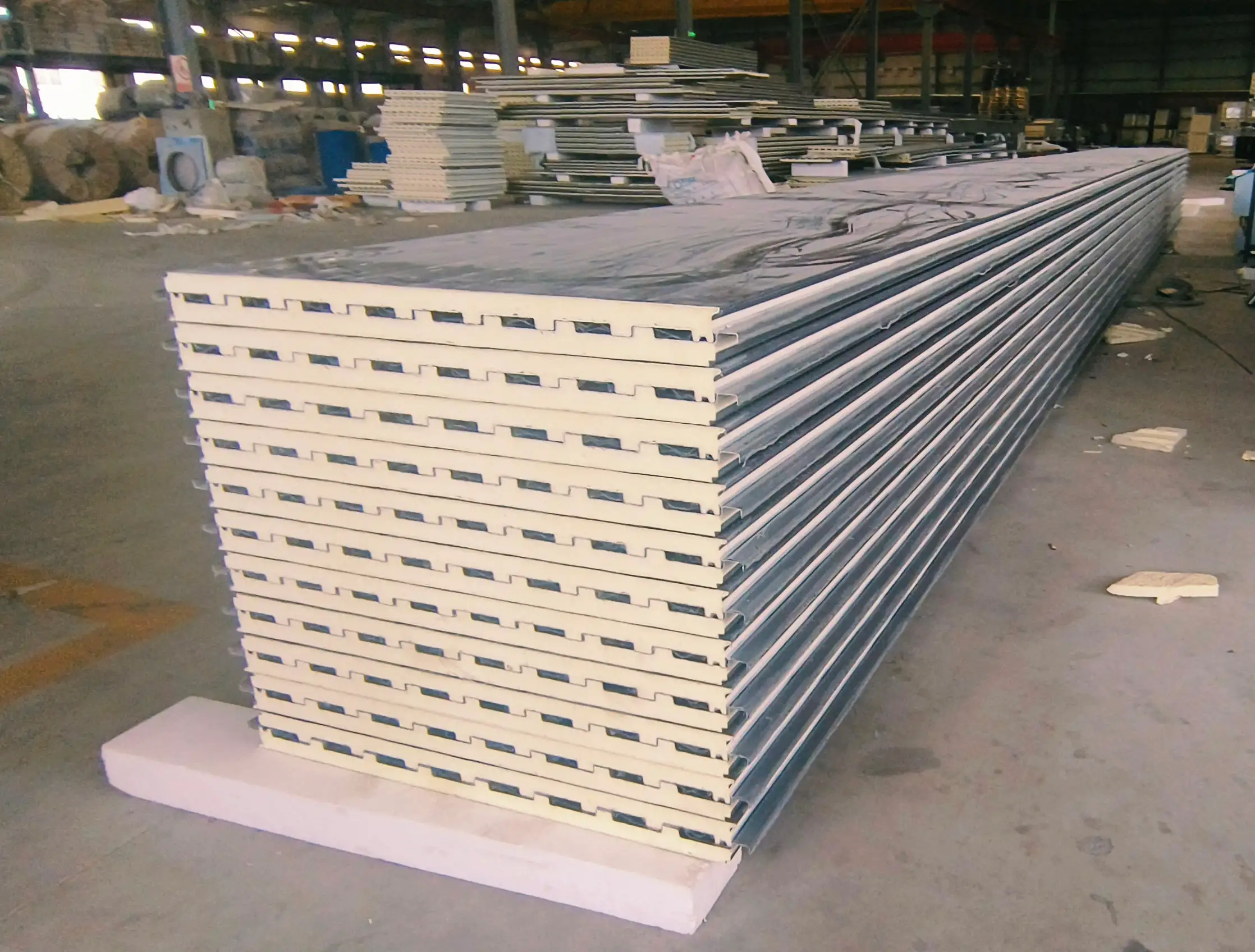

Modern construction demands materials that are **strong, lightweight, easy to install, reliable, and durable**. High-pressure rigid polyurethane (PU) foam meets all these requirements while offering **exceptional fire resistance and thermal insulation**, making it ideal for applications such as:
Cold storage & refrigeration
Hospitals & healthcare facilities
Automotive manufacturing
Stadiums & large-scale structures
Villas & high-end buildings

Our high-pressure PU production line** delivers superior performance, matching global industry standards with the following advantages:

**Key Benefits:**
1. **Fire Resistance** – Complies with **B2-grade fireproofing** standards.
2. **Thermal Insulation** – Achieves refrigeration/cold-storage-level efficiency.
3. **Superior Foam Quality** – High-pressure mixing ensures **homogeneous AB material distribution**, enhancing foam consistency and **extending service life**.
4. **Cost Efficiency** – **7–9% raw material savings** vs. low-pressure systems.
5. **Self-Cleaning System** – Nozzles require **no manual cleaning**, reducing maintenance effort.
6. **Automated Flying Saw Cutting** – Minimizes labor costs with precision cutting.
7. **Safety Assurance** – Patented **pressure detection protection** for stable, safe operation.

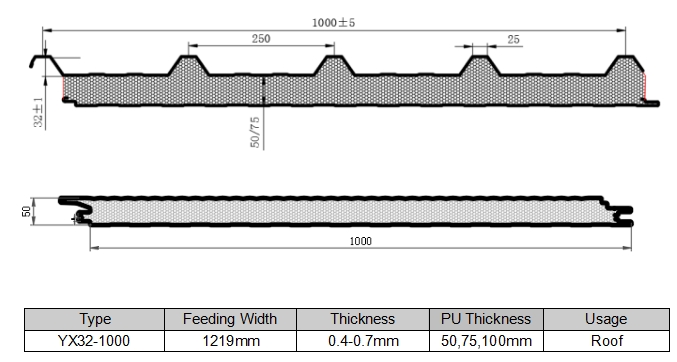

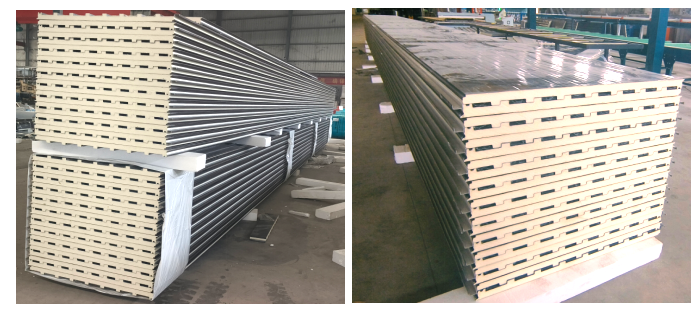

8. **Customizable Options** – Available with **dual-sided metal cladding** (thickness: **50mm, 70mm, 100mm**).

### **Why Choose Our PU Line?**
By integrating **advanced automation, material efficiency, and stringent safety controls**, our system optimizes productivity while ensuring long-term durability—making it the **preferred choice for high-performance insulation solutions worldwide**.

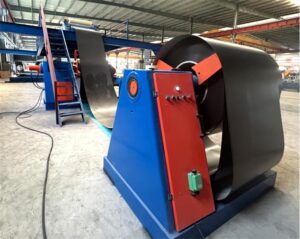

2 комплекта 5-тонных гидравлических разматывателей с погрузочной машиной

2 комплекта вальцовочных станков

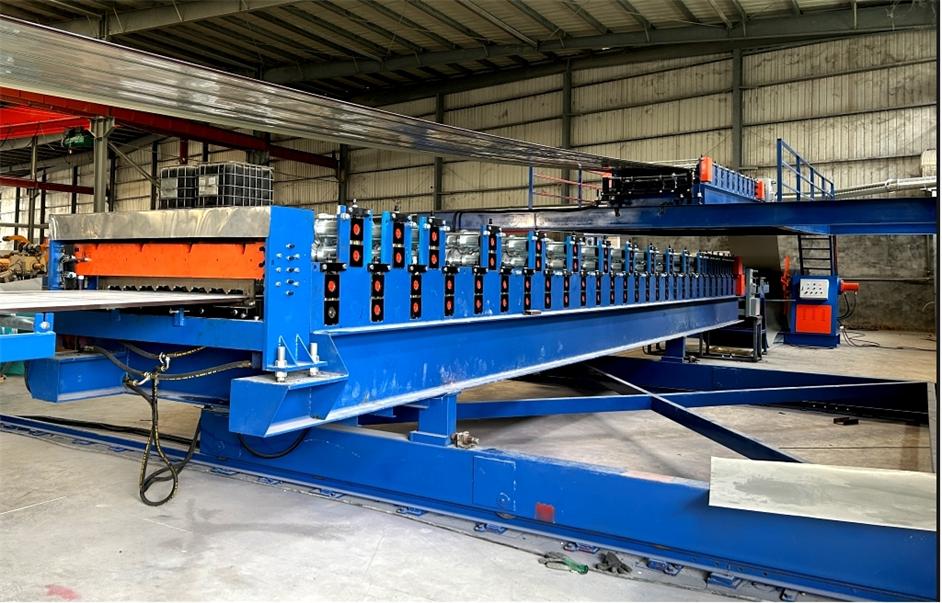

Double Roll Forming Machine – Precision & Efficiency for Your Production Line

Among the core components of the production line, the double roll forming machine plays a critical role in ensuring synchronous, precise, and efficient material shaping. This advanced equipment processes raw materials into predefined dimensions and profiles using high-precision roll forming technology, meeting strict product specifications.

1 комплект системы вспенивания ПУ высокого давления

**Principle and comparison of high-pressure foaming and low-pressure foaming of polyurethane**

1. Low-Pressure Foaming
Principle:
Mechanical mixing: Mix material A (isocyanate) and material B (polyol + additives) by low-speed stirring (200-1000 rpm), and inject them into the mold by gravity or low pressure.
Chemical reaction: Isocyanate (-NCO) reacts with polyol (-OH) to form polyurethane, accompanied by the formation of CO₂ bubbles (foaming agent effect).
Особенности:
– The mixing accuracy is low, and problems such as uneven bubbles and inconsistent density are prone to occur.

2. High-Pressure Foaming
Principle:
High-pressure impact mixing: A and B materials are accurately measured under high pressure (100-200 bar) and instantly mixed (mixing time <1ms) by high-precision collision mixing heads.
-Atomization mixing: High pressure makes the raw materials atomized to ensure uniform mixing at the molecular level.

Core advantages of high-pressure foaming:
1. More uniform mixing and finer pores
– High-pressure atomization can reduce dead zones and avoid defects caused by unmixed materials (such as lumps and uneven bubbles).
2. Higher production efficiency
– Suitable for automated continuous production.
3. Less material waste
– The mixing head is self-cleaning, with a residual amount of <0.1%, which reduces raw material loss and can save 7-9% of raw materials compared to low-pressure foaming.
4. Better product performance
– The pore structure is more uniform.

High-pressure foaming technology is superior to low-pressure foaming in terms of mixing accuracy, production efficiency and product performance, and is particularly suitable for high-end manufacturing.

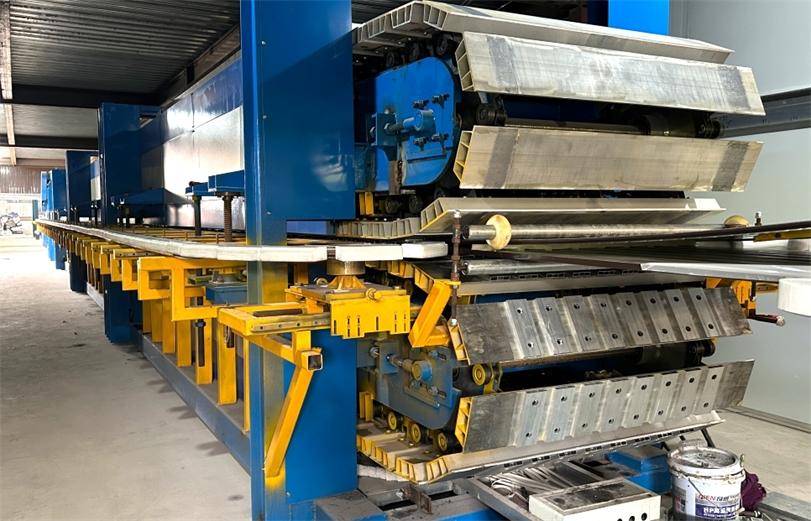

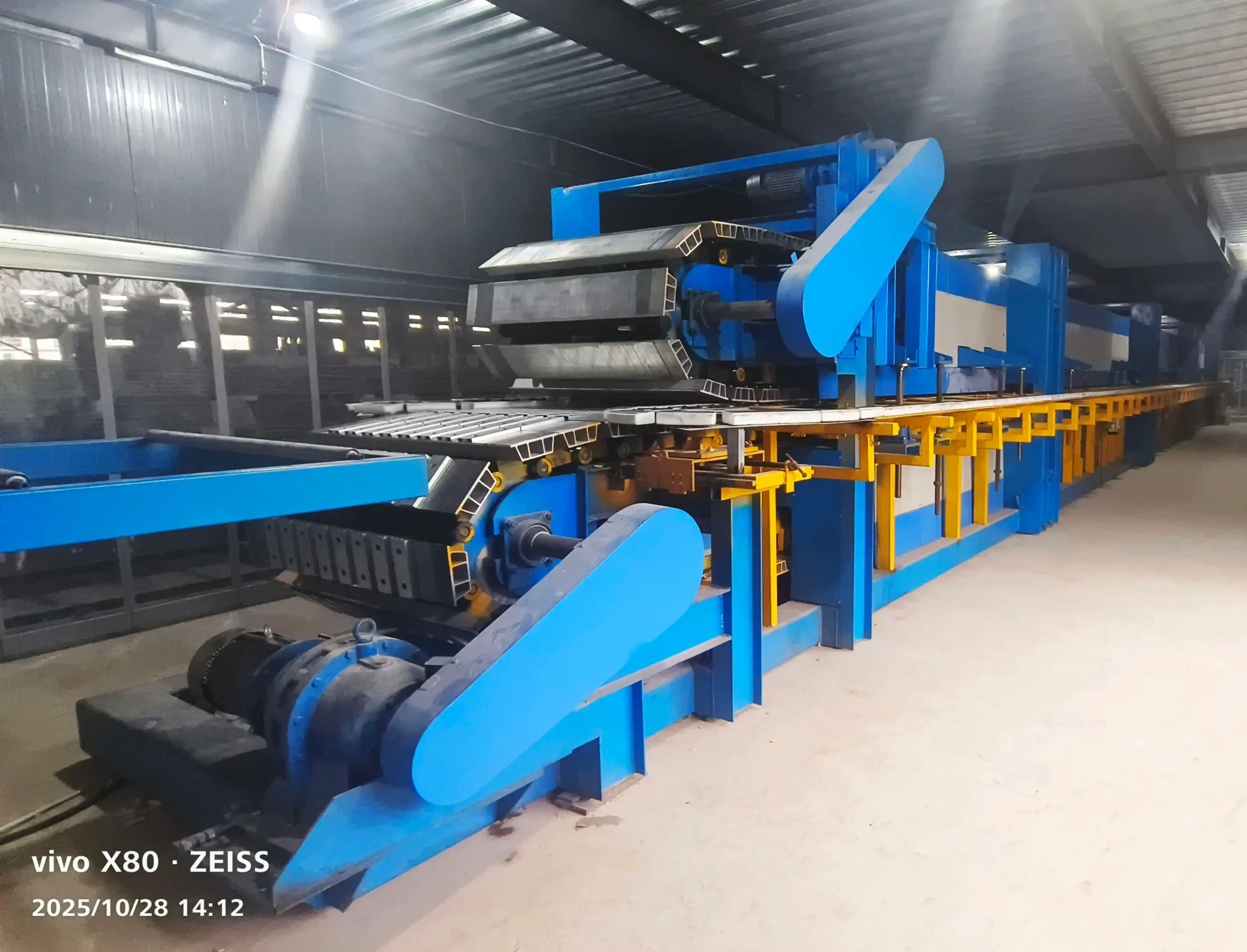

1 комплект пусковой машины

Длина полиуретановой рамы обычно составляет от 25 до 30 метров, что определяется чертежами, предоставленными заказчиком, и требуемой толщиной вспенивания. Чтобы лучше удовлетворить производственные потребности клиентов, оборудование разработано с учетом разнообразия и гибкости различных спецификаций продукции, чтобы оно могло адаптироваться к различным сценариям производства.

В нашей главной раме используется система передачи на резиновых ремнях, которая не только обеспечивает стабильность и эффективность оборудования во время работы, но и значительно снижает стоимость производства машины. По сравнению с традиционными методами передачи, резиновые ремни обладают отличной амортизацией и износостойкостью, что продлевает срок службы оборудования, снижает частоту технического обслуживания и экономит последующие эксплуатационные расходы предприятий.

1 Полный комплект системы управления PLC

Вся основная машина состоит из 3 частей: валковой машины, системы вспенивания полиуретана и системы стрижки. Каждая часть имеет независимую электронную систему управления, и все три системы могут управляться интеллектуально в режиме онлайн.

1 Летающая система резки

Servo motor cutting system

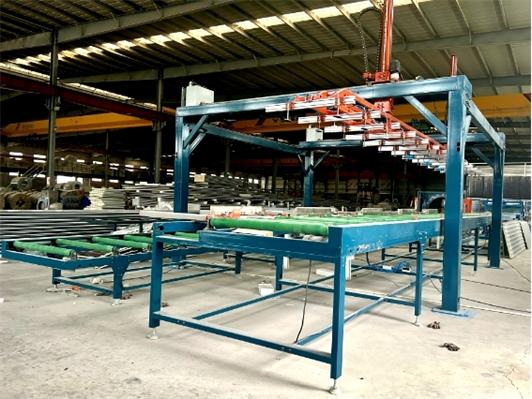

1 Pneumatic Stacker

1. Grab Length: 1.5-12m
2. Grab Width: 930-1160mm
3. Maximum Grab Weight: 500kg
4. Automatic Flip
5. Fully Automatic Computer Control

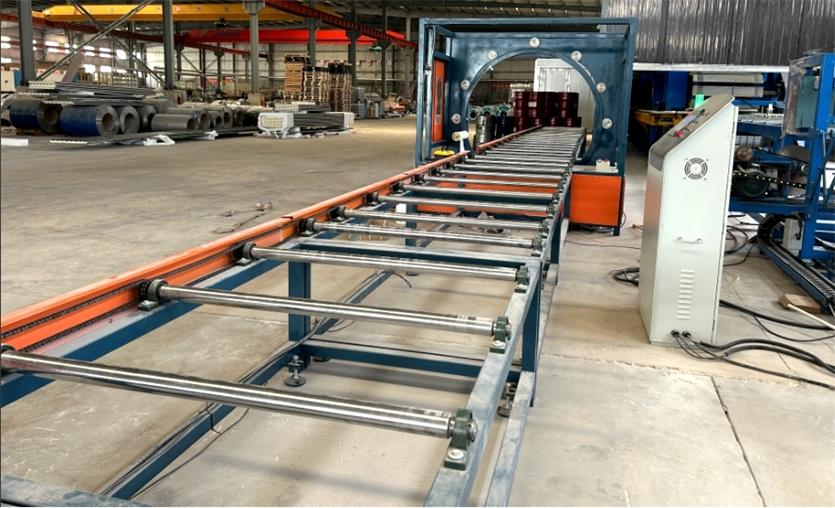

1 Wrapping Packaging Machine

1. Packaging Dimensions: 1200 x 1000
2. Product Weight: 2 tons
3. Packaging Material: Stretch Film
4. Stretch Film Dimensions: Width 500mm, Diameter within 250mm
5. Stretch Film Core Inner Diameter: 75mm
6. Packaging Method: Horizontal Conveyor Rotary Packaging
7. Film Loading Method: Ring Drives Mold Rotation
8. Conveyor and Ring Speeds Adjustable by Frequency Converter
9. Roller Length: 10 meters for both front and rear ends of the wrapping machine
